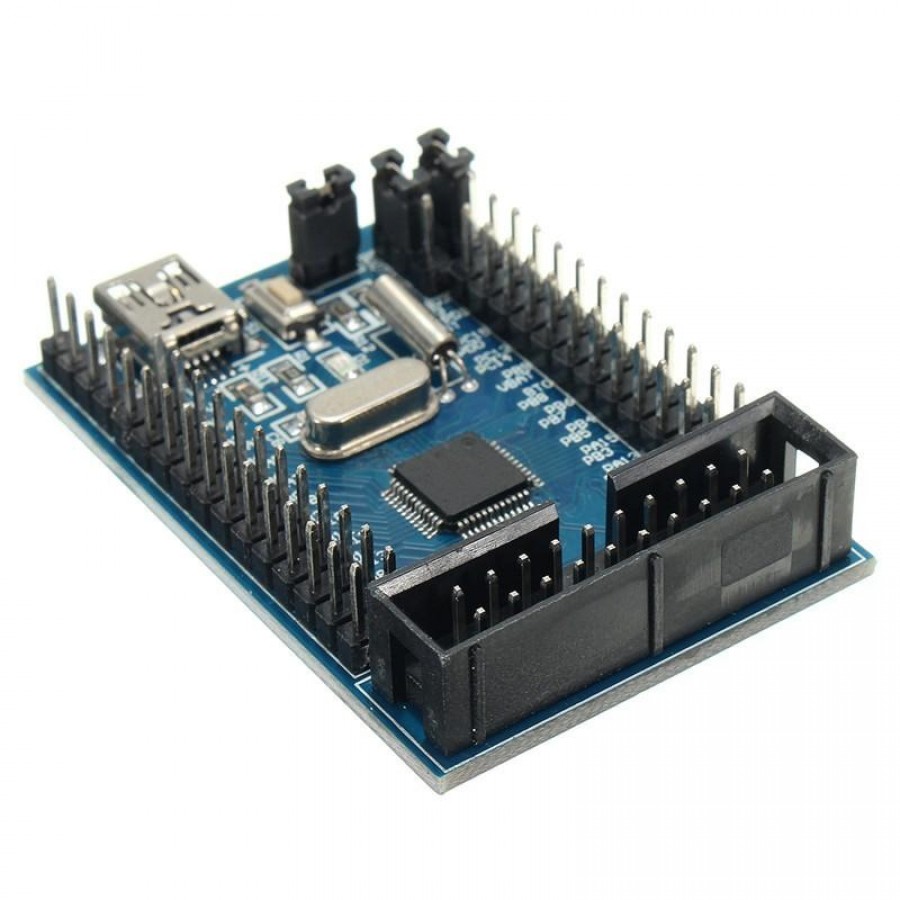

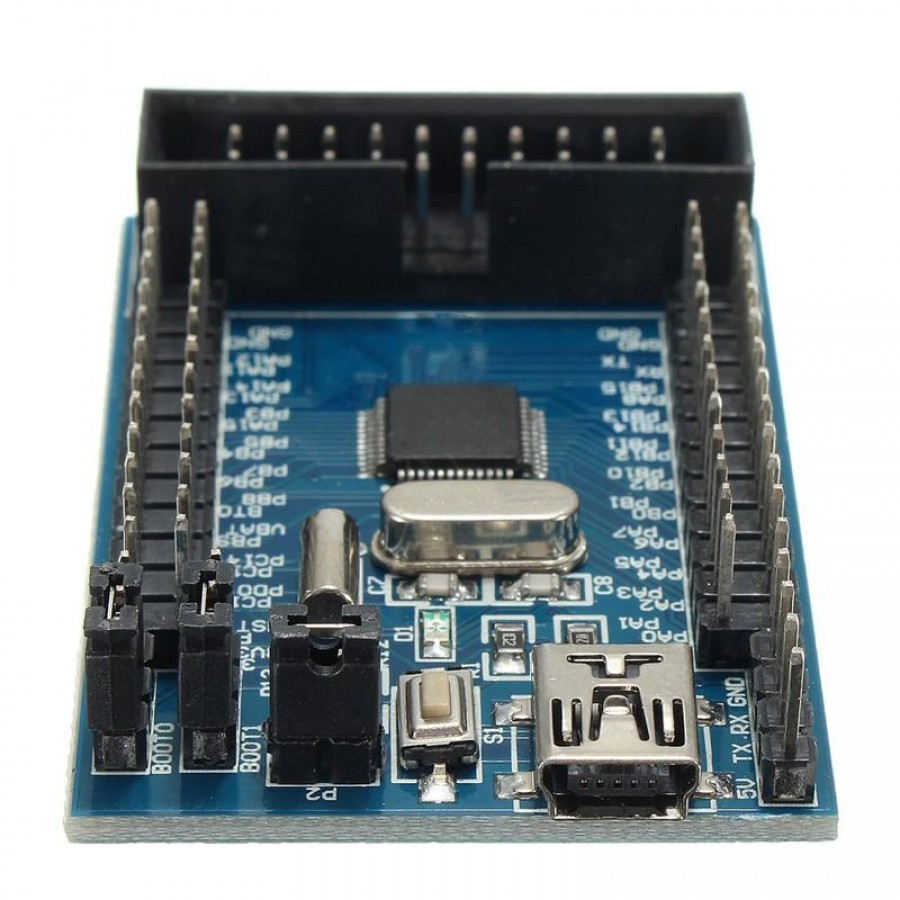

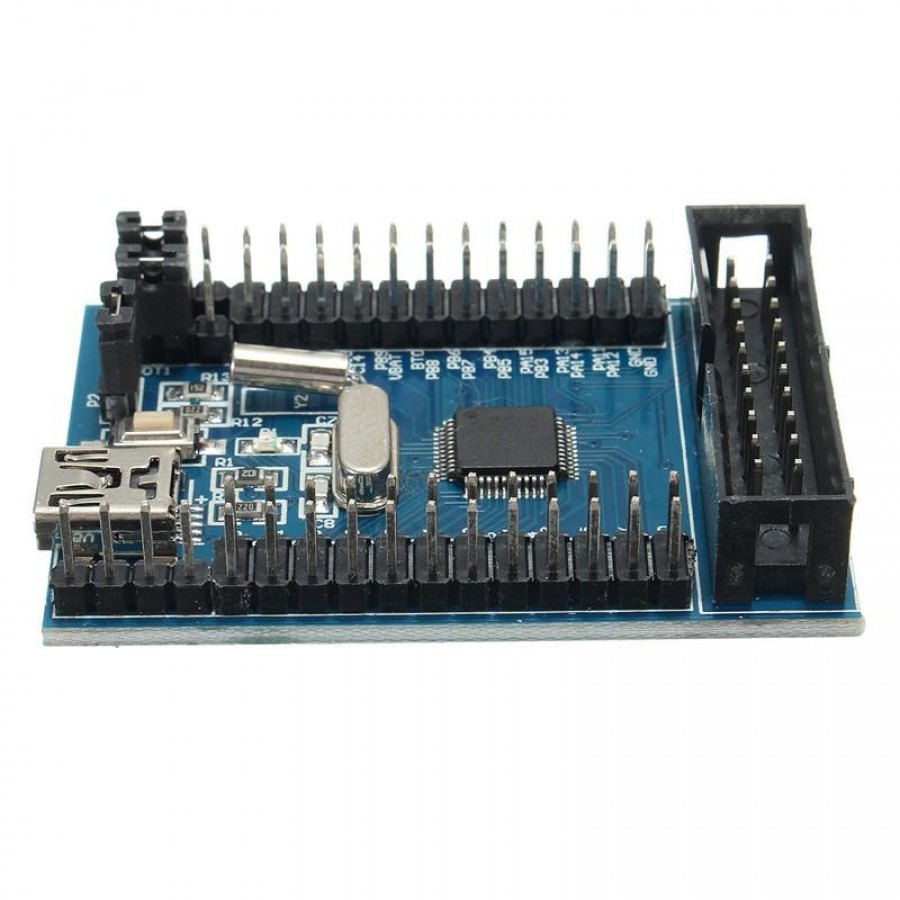

ARM Cortex-M3 STM32F103C8T6 STM32 Minimun System Development Module Board
- Product Code: 457497
- Availability: In Stock
$3.59
Specifications:1. Chip board STM32F103C8T6
2. Board JTAG interface and reset button
3. The onboard crystal 32.768KHZ and 8MHZ

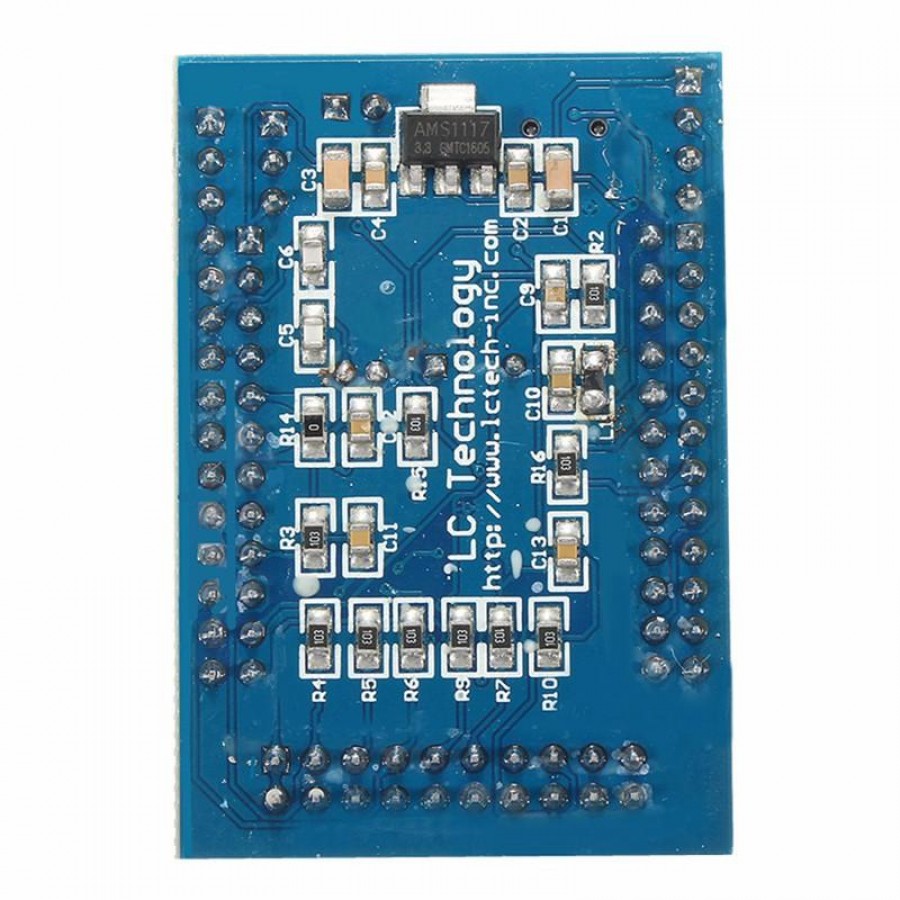

4. With 5V to 3.3V chip AMS1117-3.3
5. With a group of UART serial interfaces

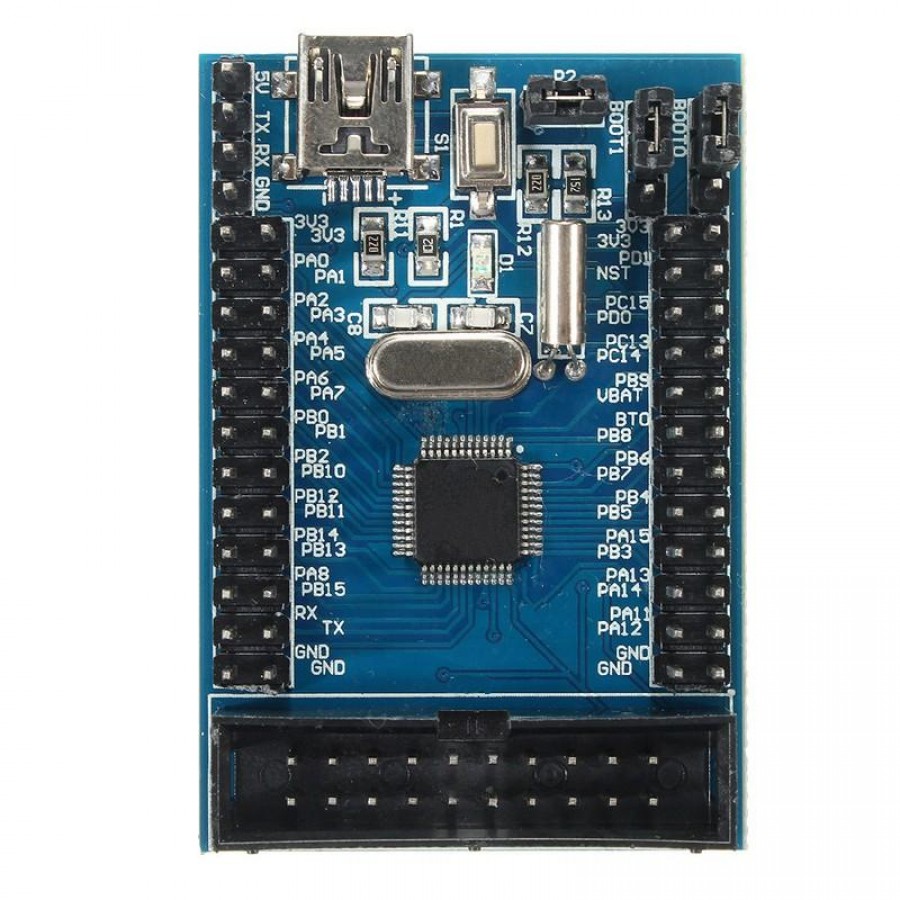

6. All I/O all the leads, and mark the I/O name
7. On-board Mini USB interface, you can give the board power supply and USB communication
8. Board size:52.1 (mm) x35.5 (mm)
Package included:1 x Module
